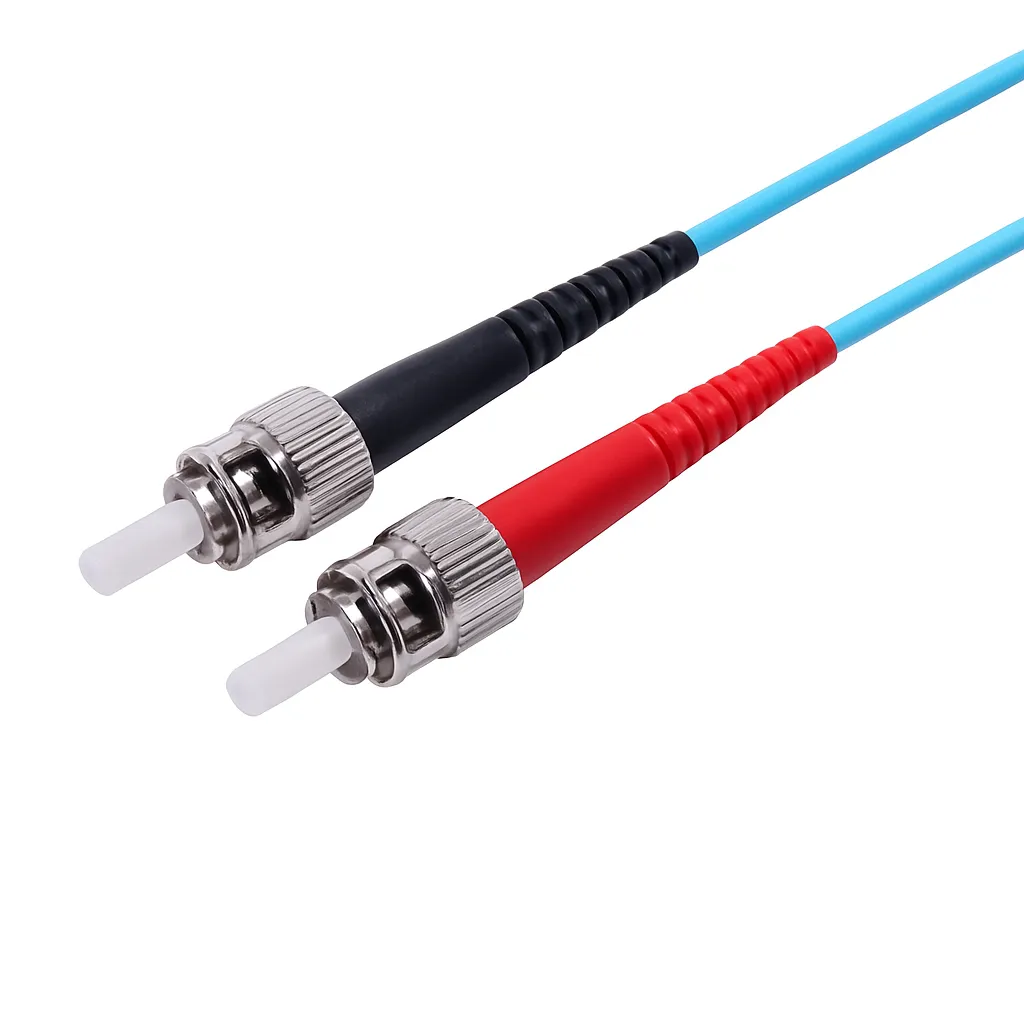

ST Fiber Optic Patch Cable (23880104)
ST Fiber Optic Cable with bayonet-style twist-lock connectors, ideal for secure and quick connections in data, telecom, and lab environments.
🔷 Full Description
The ST Fiber Optic Cable is ideal for fast and secure connections in high-traffic environments like data labs, telecom setups, and test benches. Featuring ST (Straight Tip) connectors with a bayonet-style twist-lock design, this cable allows for quick installation and reliable connections, even in environments subject to vibration or repeated handling.
Compatible with both single-mode (OS2) and multimode (OM1–OM4) fiber types, the ST patch cable delivers reliable low-loss performance in mission-critical systems. With zirconia ceramic ferrules, consistent geometry, and durable jacket options, this cable maintains long-term signal integrity and mechanical strength across telecom, test, and industrial applications.
🔷 Key Features
-
Connector Type: ST to ST (UPC/APC available)
-
Fiber Mode: Single-mode (OS2) and Multimode (OM1/OM2/OM3/OM4)
-
Bayonet-Style Locking Design: Enables quick, vibration-resistant connection
-
Low Insertion Loss: ≤ 0.3 dB for consistent optical performance
-
Ferrule Material: High-precision zirconia ceramic
-
Jacket Type: PVC or LSZH; optional color coding (yellow, orange, aqua)
-
Length Options: 0.5m to 30m (custom lengths on request)
-
Applications: Telecom, instrumentation, data centers, test labs, legacy systems, FTTH/FTTB
Technical Specifications
| Item | Details |
| Product Name | ST Fiber Optic Patch Cable (23880104) |
| Connector Type | ST (UPC/APC) to ST (UPC/APC) |
| Fiber Mode | Single-mode (OS2) / Multimode (OM1, OM2, OM3, OM4) |
| Core/Cladding | 9/125μm (SM), 50/125μm or 62.5/125μm (MM) |
| Cable Diameter | 2.0mm or 3.0mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Cable Jacket Material | LSZH or PVC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Length Options | 0.5m, 1m, 2m, 3m, 5m, 10m, custom lengths available |
| Certifications | RoHS, CE, ISO9001, IEC, TIA/EIA |
| Applications | Telecom, data centers, instrumentation, test labs, FTTB, network cabinets |
