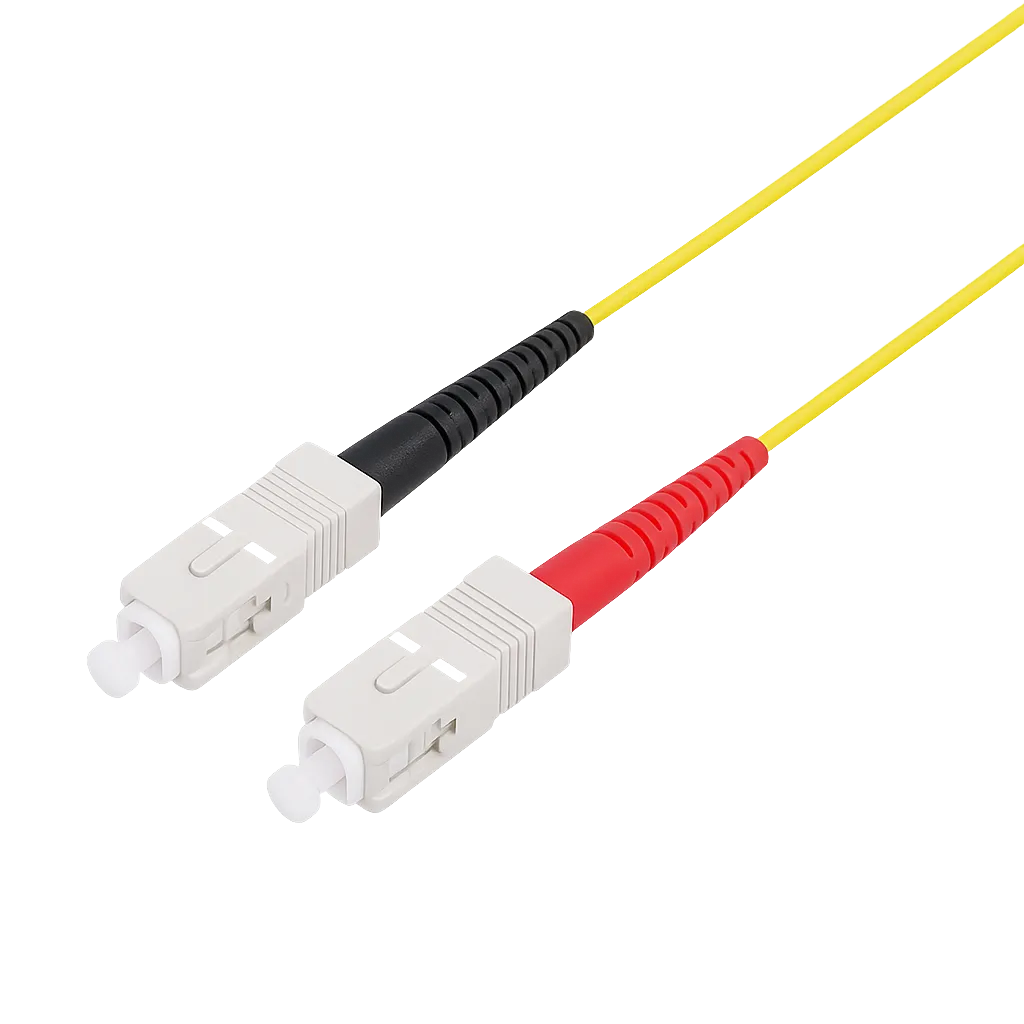

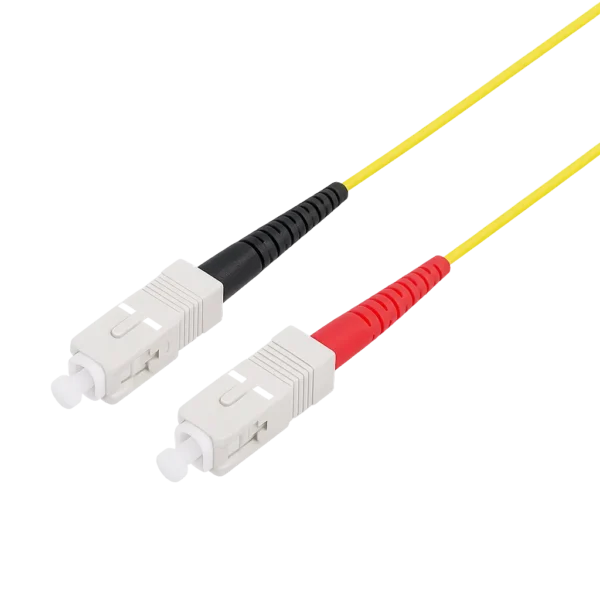

SC Fiber Optic Patch Cable (23880106)
SC Fiber Optic Cable with quick-connect push-pull design for stable, low-loss performance in data, telecom, and FTTH systems.
🔷 Full Description
The SC Fiber Optic Cable is a trusted standard in fiber communication networks, offering quick-connect and disconnect capability with a durable push-pull coupling design. The SC connector’s square shape and snap-in mechanism ensure reliable alignment and minimal signal loss in both data and telecom environments.
Compatible with single-mode (OS2) and multimode (OM1–OM4) fibers, this cable delivers stable optical performance across a variety of high-bandwidth applications. Built with zirconia ceramic ferrules and available in multiple jacket types, the SC cable is ideal for enterprise backbones, FTTH deployments, and indoor structured cabling systems.
🔷 Key Features
-
Connector Type: SC to SC (UPC/APC available)
-
Fiber Mode: Single-mode (OS2) and Multimode (OM1/OM2/OM3/OM4)
-
Push-Pull Coupling: Ensures fast and secure connection/disconnection
-
Low Insertion Loss: ≤ 0.3 dB for high signal reliability
-
Ferrule Material: High-precision zirconia ceramic
-
Jacket Type: PVC or LSZH; optional color coding (yellow, orange, aqua)
-
Length Options: 0.5m to 30m (custom lengths available)
-
Applications: Telecom, FTTH, data centers, enterprise networks, structured cabling
Technical Specifications
| Item | Details |
| Product Name | SC Fiber Optic Patch Cable (23880106) |
| Connector Type | SC (UPC/APC) to SC (UPC/APC) |
| Fiber Mode | Single-mode (OS2) / Multimode (OM1, OM2, OM3, OM4) |
| Core/Cladding | 9/125μm (SM), 50/125μm or 62.5/125μm (MM) |
| Cable Diameter | 2.0mm or 3.0mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Cable Jacket Material | LSZH or PVC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Length Options | 0.5m, 1m, 2m, 3m, 5m, 10m, 20m, 30m, or custom lengths |
| Certifications | RoHS, CE, ISO9001, IEC, TIA/EIA |
| Applications | Telecom, FTTH/FTTB, data centers, enterprise backbone, test labs |
