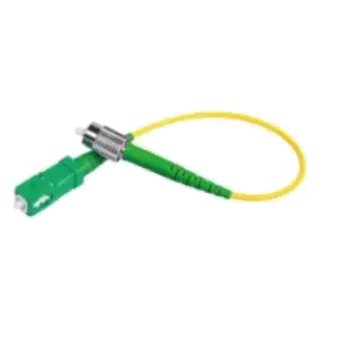

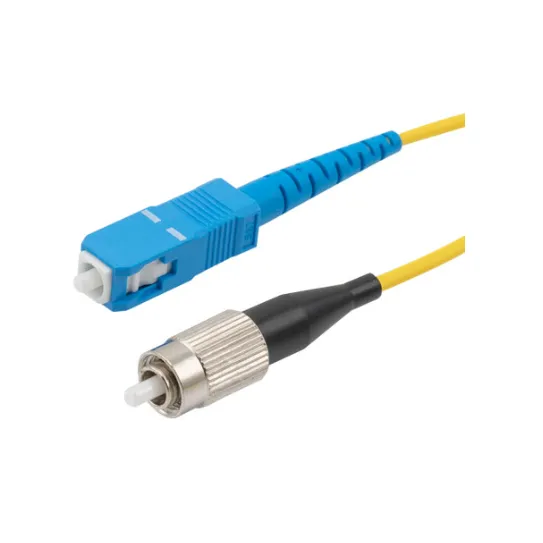

SC-FC Fiber Optic Patch Cable (23880108)
The SC-FC Fiber Optic Cable offers secure, low-loss connectivity between SC and FC interfaces, supporting both single-mode and multimode transmission. Ideal for telecom, lab, and legacy systems requiring precise, vibration-resistant connections.
🔹 Full Description
The SC-FC Fiber Optic Cable combines two reliable connector types: SC (Subscriber Connector) and FC (Ferrule Connector). This hybrid cable is ideal for interfacing newer network infrastructures with legacy systems, offering seamless integration across diverse optical environments.
The SC connector provides a push-pull locking mechanism for fast, user-friendly connection, while the FC connector uses a threaded coupling mechanism that delivers exceptional stability and resistance to vibration. The cable supports both single-mode (OS2) and multimode (OM1–OM4) fibers and features zirconia ceramic ferrules for precise alignment, low signal loss, and consistent performance in demanding telecom, lab, and data center settings.
🔹 Key Features
-
Connector Type: SC to FC (UPC/APC available)
-
Fiber Mode: Single-mode (OS2) and Multimode (OM1/OM2/OM3/OM4)
-
Hybrid Design: Combines SC push-pull and FC threaded lock for secure, versatile connectivity
-
Low Insertion Loss: ≤ 0.3 dB for stable optical performance
-
Ferrule Material: High-precision zirconia ceramic
-
Jacket Type: PVC or LSZH; available colors: yellow, orange, aqua
-
Length Options: 0.5m to 30m (custom lengths available)
-
Applications: Telecom, data centers, lab testing, instrumentation, FTTH/FTTB
Technical Specifications
| Item | Details |
| Product Name | SC-ST Fiber Optic Patch Cable (23880107) |
| Connector Type | SC (UPC/APC) to ST (UPC/APC) |
| Fiber Mode | Single-mode (OS2) / Multimode (OM1, OM2, OM3, OM4) |
| Core/Cladding | 9/125μm (SM), 50/125μm or 62.5/125μm (MM) |
| Cable Diameter | 2.0mm or 3.0mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Cable Jacket Material | LSZH or PVC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Length Options | 0.5m, 1m, 2m, 3m, 5m, 10m, 20m, 30m, or custom lengths |
| Certifications | RoHS, CE, ISO9001, IEC, TIA/EIA |
| Applications | Telecom, FTTH/FTTB, test labs, instrumentation, legacy integration |
