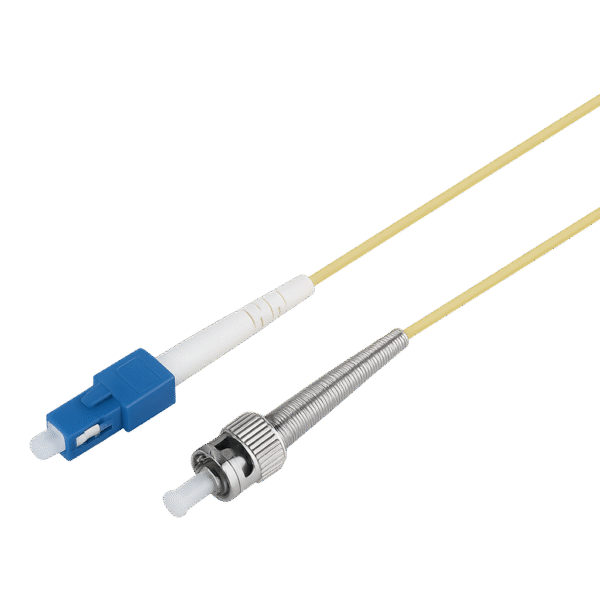

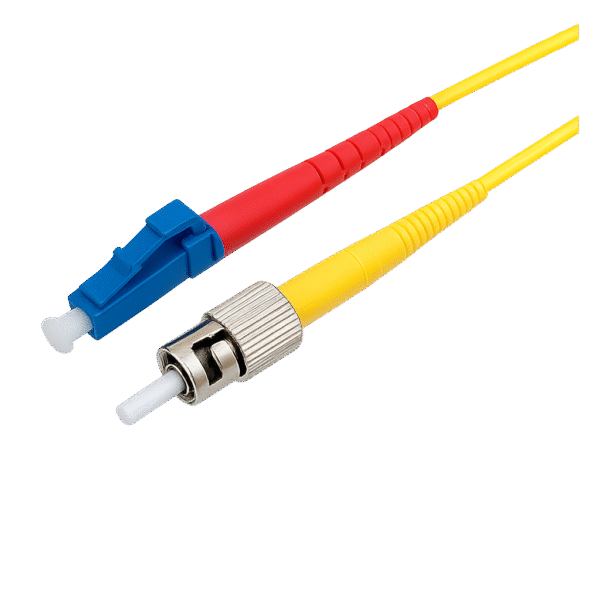

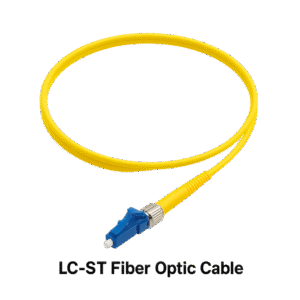

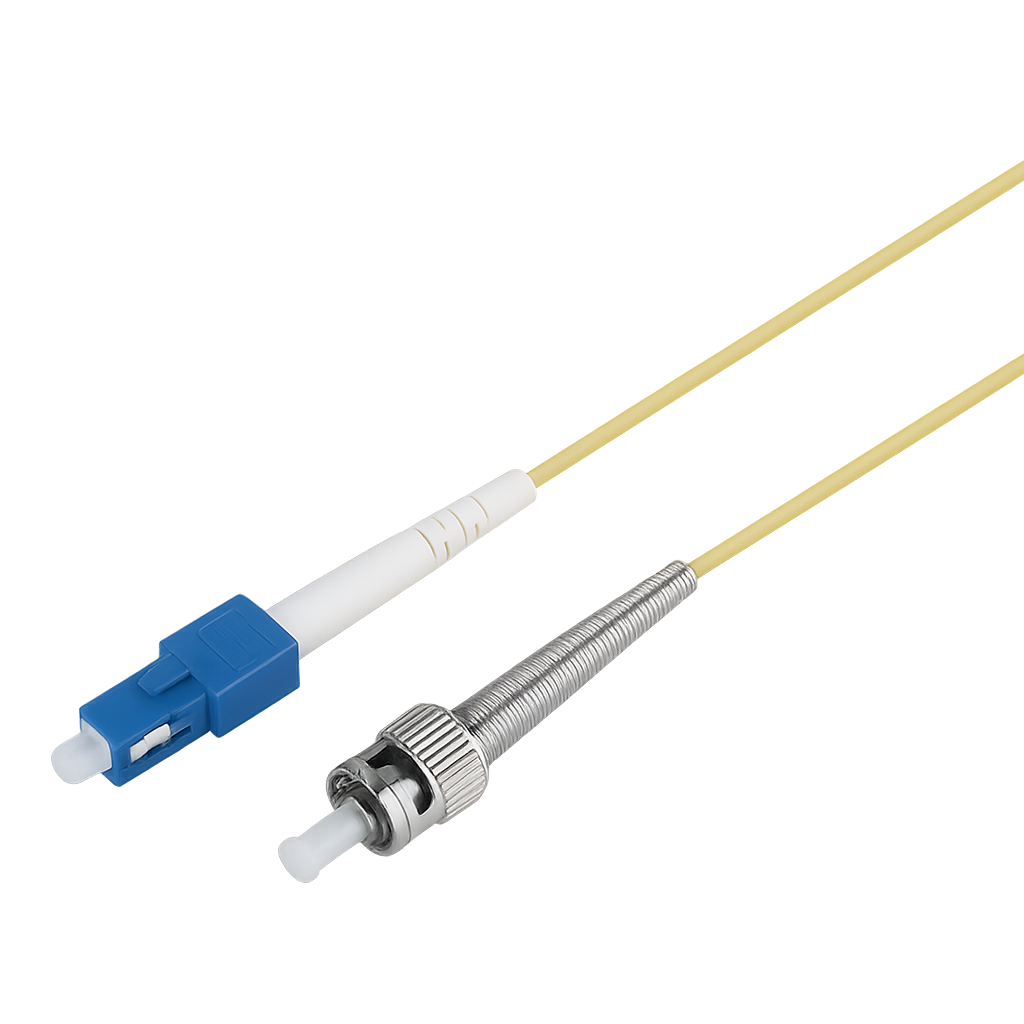

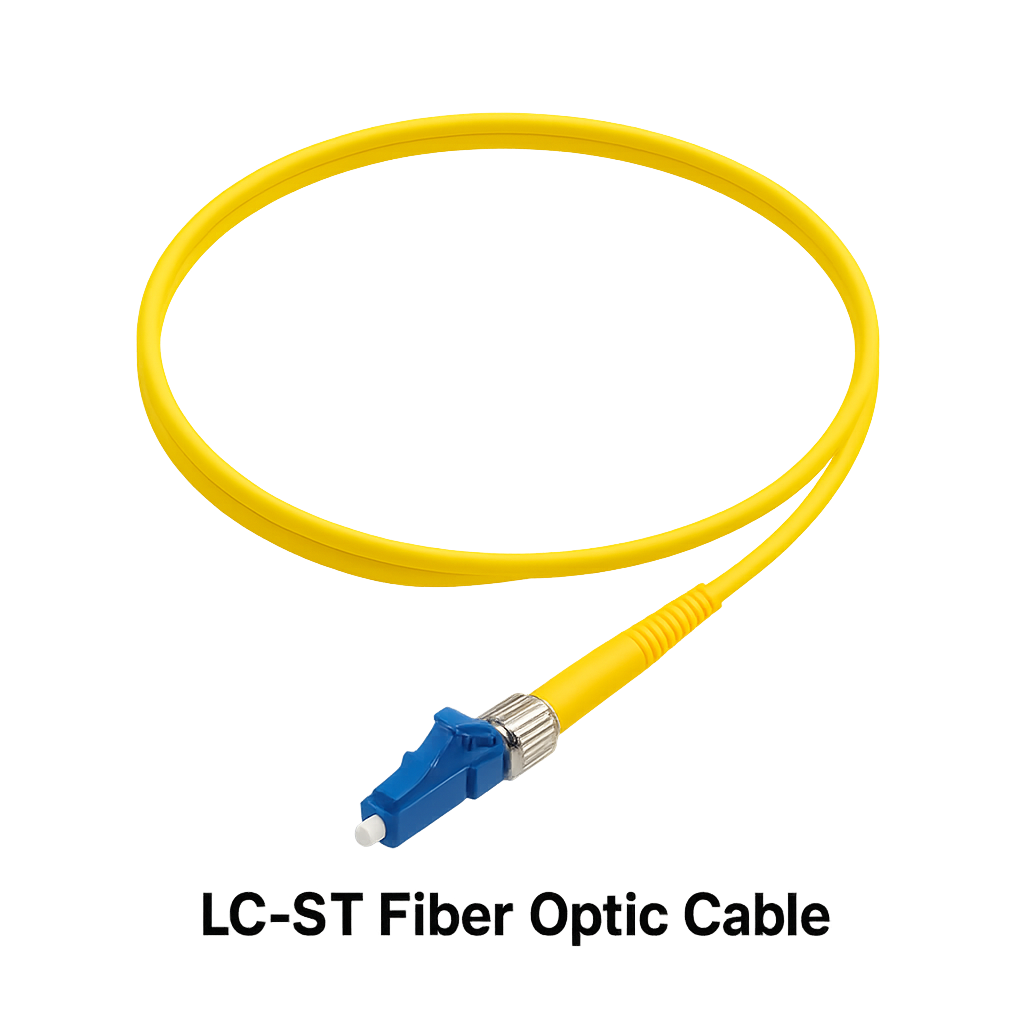

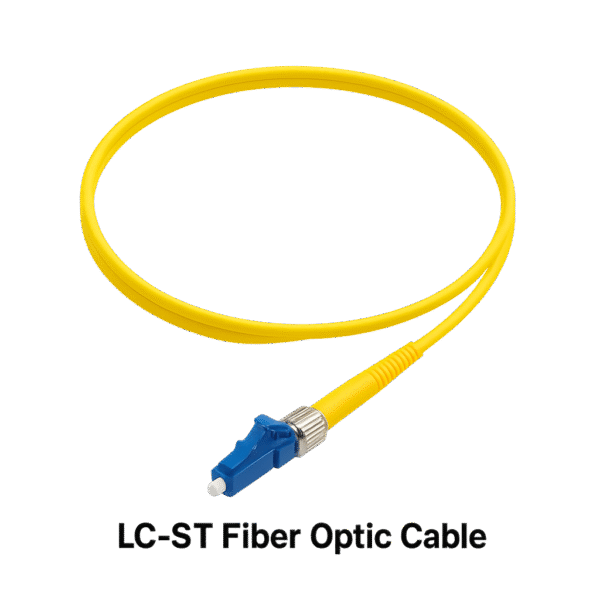

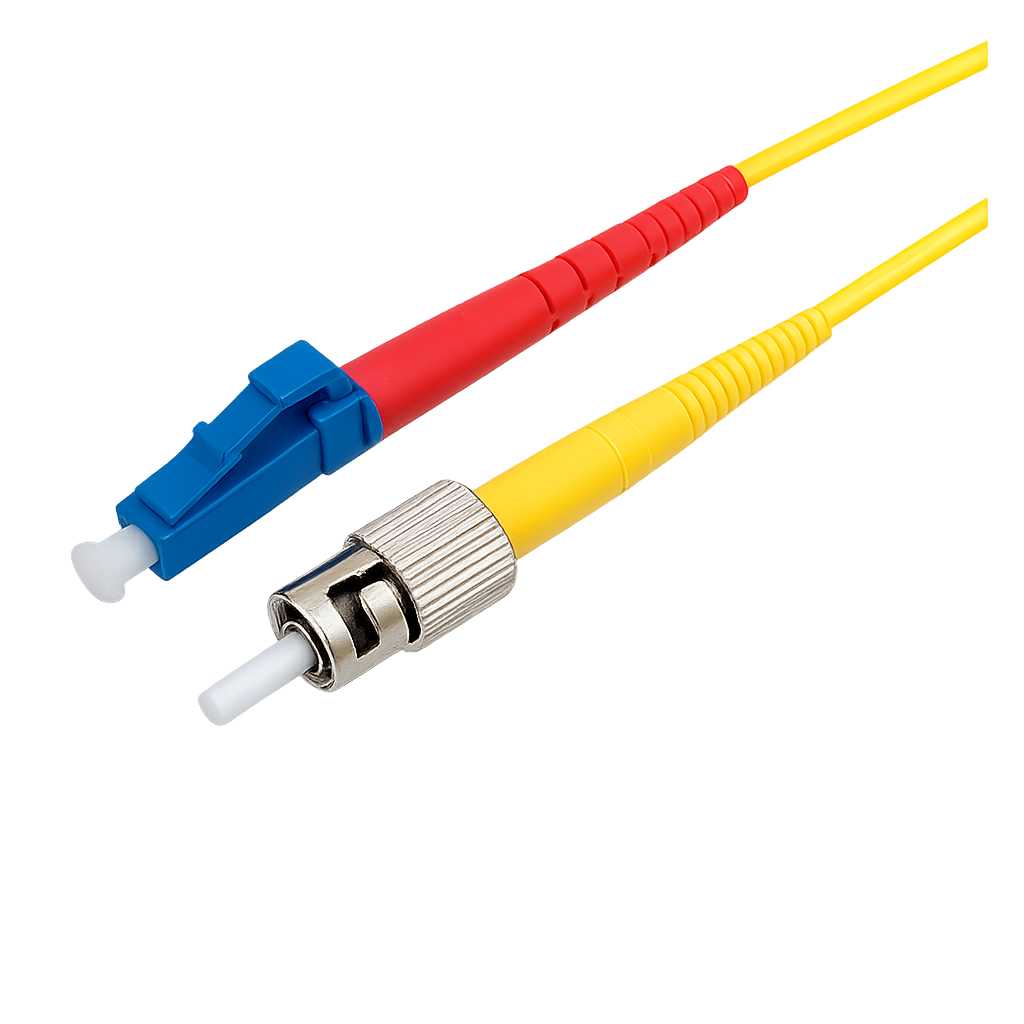

LC-ST Fiber Optic Cable (23880102)
A versatile patch cable featuring an LC connector on one end and an ST connector on the other, ideal for linking modern equipment to legacy systems in labs, campuses, or telecom networks.
🔹 Full Description
The LC-ST Fiber Optic Cable bridges two distinct connector types—LC (Lucent Connector) and ST (Straight Tip)—to ensure compatibility between modern high-density installations and older telecom or test systems. It supports both single-mode and multimode fiber types, delivering high-speed, low-loss data transmission in a wide range of environments.
Designed with durable boots and precise ceramic ferrules, this cable ensures long-term performance, signal reliability, and reduced insertion loss. It is commonly used in telecom rooms, campus networks, test environments, and legacy network transitions.
🔹 Key Features
- Connector Type: LC to ST
- Fiber Mode: Available in Single-mode (OS2) and Multimode (OM1/OM2/OM3)
- Low Insertion Loss: Ensures optimal signal performance
- Ferrule Material: Zirconia ceramic for high precision
- Jacket Type: PVC or LSZH, various colors (e.g., yellow, orange, aqua)
- Length Options: 0.5m to 30m (custom lengths available)
- Applications: Telecom, data centers, legacy device connection, test labs
Technical Specifications
| Item | Details |
| Product Name | LC-ST Fiber Optic Patch Cable (23880102) |
| Connector Type | LC (UPC/APC) to ST (UPC/APC) |
| Fiber Mode | Single-mode (OS2) / Multimode (OM1, OM2, OM3, OM4) |
| Core/Cladding | 9/125μm (SM), 50/125μm or 62.5/125μm (MM) |
| Cable Diameter | 2.0mm or 3.0mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Cable Jacket Material | LSZH or PVC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Length Options | 0.5m, 1m, 2m, 3m, 5m, 10m, custom lengths available |
| Certifications | RoHS, CE, ISO9001, IEC, TIA/EIA |
| Application | Telecom, Data Centers, Networking Equipment, FTTH, FTTB, Lab, Legacy Systems |
