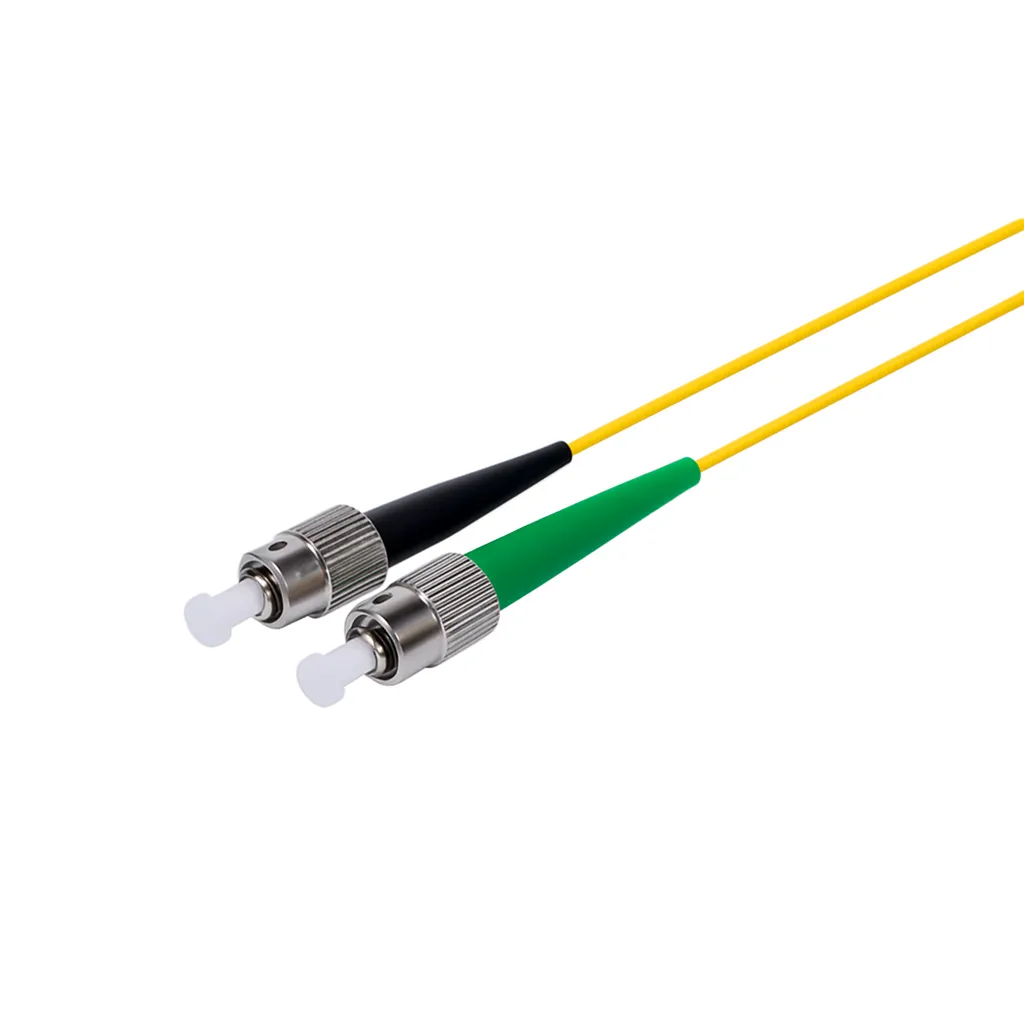

FC Fiber Optic Patch Cable (23880103)
FC Fiber Optic Cable with precision-polished connectors for high-speed data transmission and secure threaded connections in demanding environments.
🔹 Full Description
The FC Fiber Optic Cable is engineered for precision connectivity in environments requiring high mechanical stability and low signal loss. Featuring an FC (Ferrule Connector) interface on both ends, it provides a threaded coupling mechanism that ensures secure and vibration-resistant connections—ideal for instrumentation, lab testing, and telecom systems.
Compatible with both single-mode (OS2) and multimode (OM1–OM4) fiber types, this patch cable delivers dependable performance in mission-critical setups. With zirconia ceramic ferrules, tight tolerances, and ruggedized jacket options, the FC cable maintains optical integrity across a wide range of applications including data transmission, system monitoring, and network diagnostics.
🔹 Key Features
- Connector Type: FC to FC (UPC/APC available)
- Fiber Mode: Single-mode (OS2) and Multimode (OM1/OM2/OM3/OM4)
- Threaded Locking Design: Provides secure, vibration-resistant connection
- Low Insertion Loss: ≤ 0.3 dB for consistent signal quality
- Ferrule Material: High-precision zirconia ceramic
- Jacket Type: PVC or LSZH; optional color coding (yellow, orange, aqua)
- Length Options: 0.5m to 30m (custom lengths on request)
- Applications: Telecom, instrumentation, data centers, lab testing, FTTH/FTTB
Technical Specifications
|
Item |
Details |
| Product Name | FC Fiber Optic Patch Cable (23880103) |
| Connector Type | FC (UPC/APC) to FC (UPC/APC) |
| Fiber Mode | Single-mode (OS2) / Multimode (OM1, OM2, OM3, OM4) |
| Core/Cladding | 9/125μm (SM), 50/125μm or 62.5/125μm (MM) |
| Cable Diameter | 2.0mm or 3.0mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Cable Jacket Material | LSZH or PVC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Length Options | 0.5m, 1m, 2m, 3m, 5m, 10m, custom lengths available |
| Certifications | RoHS, CE, ISO9001, IEC, TIA/EIA |
| Application | Telecom, Data Centers, Instrumentation, Test Equipment, FTTH, FTTB, Labs |
Related products
-
-
Fiber Optic Cables

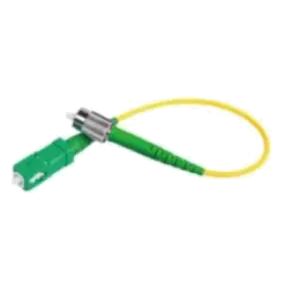

SC-FC Fiber Optic Patch Cable (23880108)
